User Manual

Documentation & Manual

CLUBCORE is a high-fidelity effect plugin designed for bass frequency enhancement. It uses parallel band splitting to isolate and process lows with dynamics, harmonics and spatial treatment — while keeping highs crystal clear.

Click on any section of the interface to see its description.

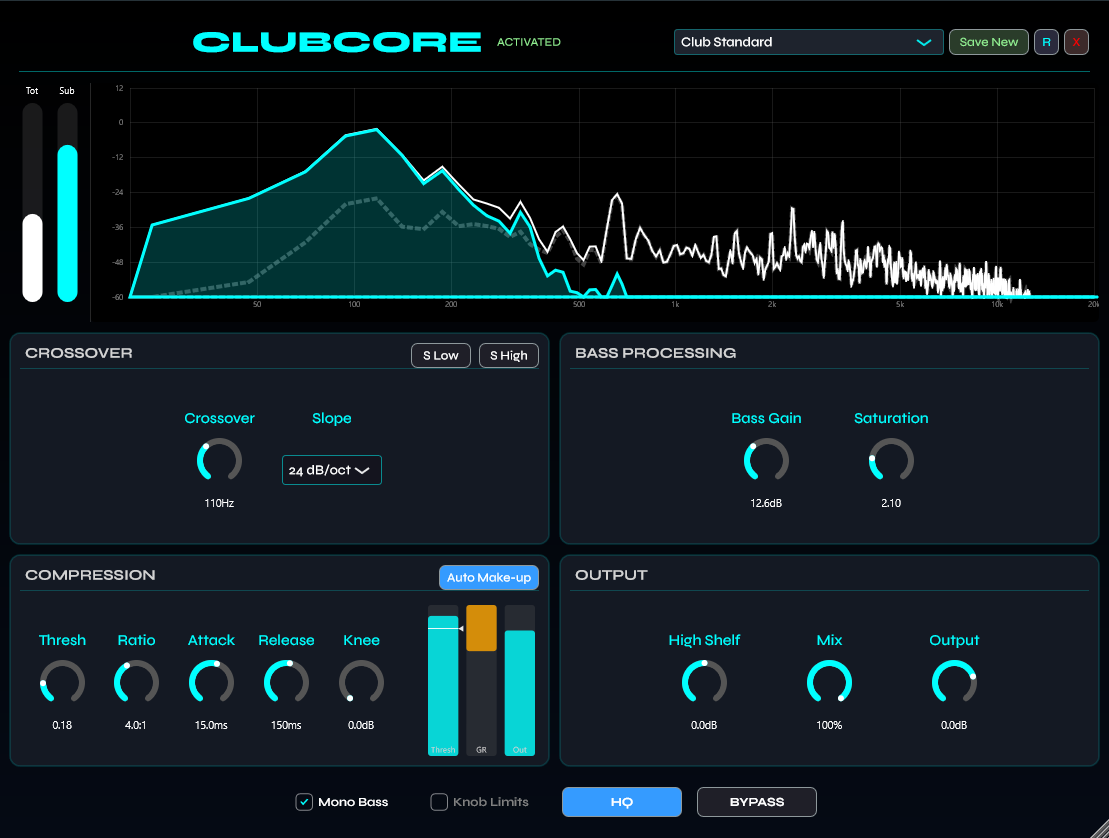

CLUBCORE VST3 / AU plugin interface - The zero latency DJ bass enhancer and club master bass plugin (plugin VST basse DJ)

Parameter Reference

Crossover

  • LOW FREQ35 Hz – 250 Hz

    Cutoff frequency between lows and the rest of the spectrum.

  • SLOPE6 / 12 / 24 / 48 dB/oct

    Filter steepness. 24 & 48 dB use Linkwitz-Riley for phase-perfect summation.

  • SOLO LOW / HIGHOn / Off

    Audition each band in isolation to dial in the crossover point.

Bass Processing

  • BASS BOOST0 – +36 dB

    Linear gain applied to the isolated low band.

  • HEAT0.0 – 10.0

    Harmonic saturation (soft clipping) for density and warmth.

Compression (Punch)

  • PUNCHThreshold

    VCA-style compressor. Higher = more compression on the low end.

  • RATIO1:1 – 20:1

    Compression intensity. Default 4:1 is a musical starting point.

  • ATTACK1 – 100 ms

    Reaction speed. Slow attack lets kick transients punch through.

  • RELEASE10 – 500 ms

    Recovery speed. Match to tempo for a breathing, musical feel.

  • KNEE0 – 12 dB

    Transition softness before the threshold.

  • AUTO MAKEUPOn / Off

    Automatic volume compensation after compression.

Output & Utilities

  • HIGH SHELF−6 – +6 dB

    Brightens or darkens the high band without touching bass.

  • MONOOn / Off

    Sums lows to mono — essential for club systems.

  • HQ MODEOn / Off

    4× oversampling for pristine saturation at high Heat settings.

  • MIX0 – 100%

    Parallel Dry/Wet blend for subtle or full processing.

  • OUTPUT−36 – +12 dB

    Final volume stage before the brickwall limiter.

  • BYPASSOn / Off

    Click-free bypass of all processing.
